FeCrAl Heat Resistant Wire Mesh Anti - Carburization For High Density Factory

Name: FeCrAl Heat Resistant Wire Mesh Anti Carburization For High Density Factory
Brand: TIANHAO
Price: 1 USD

China FeCrAl Heat Resistant Wire Mesh Anti - Carburization For High Density Factory wholesale

Brand Name : TIANHAO

Model Number : TH-ALLOY RESISTANCE MESH

Certification : ISO

Place of Origin : HEBEI

MOQ : 1 kg

Price : Price will be offered to you once get your detailed specification.

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200sqm per day

Delivery Time : In stock, within 3-5 work days, no stock, 15-20work days. If have mold, 10-15days, if no mold, 20-30days.

Packaging Details : 1.inside use carton pipe for support+wire mesh layer+water proof paper 2.outside use plastic wooden bags, +wooden case/carton pipes/wooden pallets. 3.also we can as per your requirements.

Product Nmae : FeCrAl ( Iron-chromium-aluminium ) Alloy Heat Resistance Wire Mesh Screen

Material : FeCrAl Wire

Mesh : 1-200 mesh

Feature : Heat resistance

Weaving : Plain twill and dutch

Sample : Available

Contact Now

FeCrAl ( Iron-chromium-aluminium ) Alloy Heat Resistance Wire Mesh Screen

What is FeCrAl Wire mesh?

FeCrAl Mesh is made of iron-chromium-aluminum alloys such as 0Cr25Al5, 0Cr23Al5, D, A-1, etc. It is an electrically thermal resistant product available in the regular styles. It offers excellent heat resistance and prevents oxidation and corrosion in the variable high temperature and large pressure conditions. FeCrAl Mesh is commonly utilized for heating and drying operations.

FeCrAl Mesh Highest Working Temperature:

Alloy	Temperature
Cr21Al4	1100oC
Cr21Al6	1250oC
Cr23Al5	1250oC
Cr25Al5	1250oC
D	1200oC
A-1	1350oC

Properties of FeCrAl Mesh:

Excellent heat resistance
Prevents oxidation and sulfur based corrosion
Anti-carburization
Large surface load bearing
High strength and durable
Low temperature coefficient of resistance

Applications of FeCrAl Heating Mesh:

FeCrAl Mesh is primarily utilized as:

1. drying and heating devices in metallurgy,

2. colliery, dying, food storage,

3. hospital,

4. high density factory, industrial electric furnace,

5. household appliances,

6. gas burners and infrared equipments and heaters.

Mehs size table

Specification		Aperture mm	Wire Diameter mm	Roll Width m	Weight kg/m2
Mesh	Wire Gauge	Aperture mm	Wire Diameter mm	Roll Width m	Weight kg/m2
8(T)	21	2.375	0.8	1.0	2.5
8(T)	22	2.475	0.7	1.0	1.84
10(T)	23	1.94	0.6	0.6	1.69
12(T)	24	1.557	0.559	1.0	1.8
17(T)	24	0.94	0.55	0.6	2.57
20(P)	33	1.02	0.25	1.0	0.587
20(P)	32	1.0	0.27	1.0	0.685
20(P)	30	0.97	0.30	1.0	0.846
25(P)	30	0.71	0.30	1.0	1.125
30(P)	38	0.69	0.15	1.0	0.30
34(P)	33	0.49	0.25	1.0	1.06
40(P)	35	0.425	0.21	1.0	0.83
40(T)	35	0.425	0.21	1.0	0.83
44(T)	35	0.367	0.21	1.0	0.88
60(T)	38	0.273	0.15	1.0	0.66
80(P)	43	0.227	0.09	1.0	0.324

Thanks for your attention, any need, pls feel free to contact with me !

Product Tags:

heat resistant mesh screen

heat resistant netting

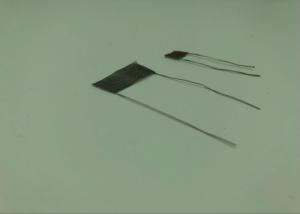

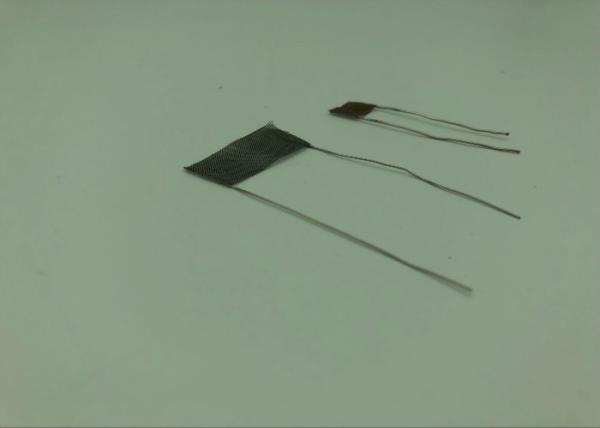

FeCrAl Heat Resistant Wire Mesh Anti - Carburization For High Density Factory Images
