Production Introduction

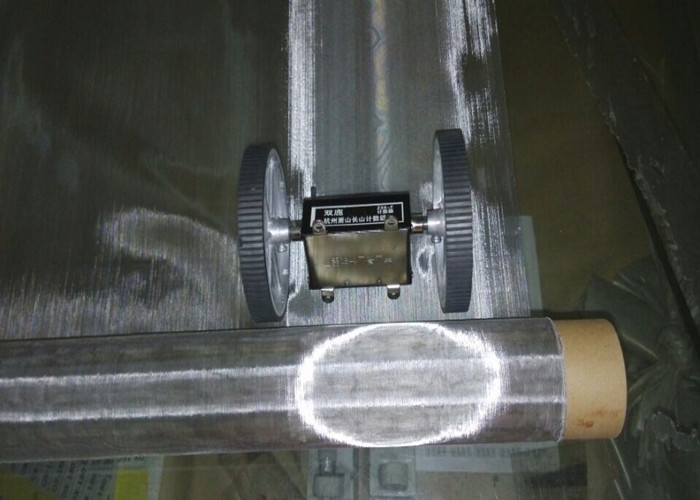

Monel Wire Mesh
We have advanced loom for weaving in monel wire mesh.We can supply other special material wire mesh products,such as: nickel wire mesh(Ni-Cr),monel wire mesh,titanium wire mesh and so on.
Weave Pattern:plain weave, twill weave, dutch weave.
This 400 grade monel is highly resistant to the corrosive action of acids, alkalides and salt water. It has the same strength of mild steel.
Monel Woven Wire Mesh is often used in marine applications such as piping systems and strainer baskets as well as in chemical processing equipment and heat exchangers. Please see below a typical chemical analysis of Monel Woven Wire Mesh.
Packing: waterproof paper with plastic cloth,then put into wooden box.
Monel wire Mesh: 8 mesh to 200 mesh.
| Specification List of Monel Wire Mesh |
| Mesh/Inch |
Wire Dia
mm
d |
Mesh
Opening mm
w |
Opening Area
A
% |
Weight
(kg/sq m) |
Mesh /Inch |
Wire Dia
mm
d |
Mesh Opening
mm
w |
Opening Area
A
% |
Weight
(kg/sq m) |
| 8 |
0.710 |
2.465 |
60.2% |
2.01 |
30 |
0.279 |
0.567 |
44.8% |
1.167 |
| 10 |
0.635 |
1.905 |
56.3% |
2.02 |
35 |
0.330 |
0.396 |
29.7% |
1.905 |
| 12 |
0.584 |
1.532 |
51.8% |
2.04 |
40 |
0.254 |
0.381 |
36% |
1.290 |
| 14 |
0.417 |
1.397 |
59.0% |
1.217 |
60 |
0.160 |
0.263 |
39% |
0.768 |
| 16 |
0.376 |
1.212 |
58.0% |
1.131 |
80 |
0.120 |
0.198 |
39% |
0.576 |
| 18 |
0.406 |
1.005 |
50.7% |
1.483 |
100 |
0.100 |
0.154 |
37% |
0.500 |
| 20 |
0.406 |
0.846 |
46.2% |
1.648 |
120 |
0.090 |
0.122 |
33% |
0.486 |
| 24 |
0.274 |
0.784 |
55.0% |
0.901 |
150 |
0.066 |
0.103 |
37.2% |
0.326 |
| 28 |
0.234 |
0.673 |
55.0% |
0.767 |
200 |
0.053 |
0.074 |
33.6% |
0.281 |
Monel 400 Chemical Composition %
| C |
Mn |
Fe |
Cu |
Ni |
Si |
S |
| Max |
Max |
Max |
Min/Max |
Min |
Max |
Max |
| 0.30 |
2 |
2.5 |
28.0-34.0 |
63.0 |
0.5 |
0.024
|
Materil details- Monel data for your reference:
Mechanical properties of monel alloy 400
|
Related character
|
Tensiile strength (MPa)
|
yield strength (MPa)
|
elongation(%)
|
hardness(HB)
|
|
Data
|
480/1275
|
170/790
|
20/35
|
255/370
|
Alloy 400 has corrosion resistance properties against folowing sea-water and is extensively used for marine applications.
Alloy 400 is also extremely reisitant to stress corrosion cracking in most freshwaters. alloy 400 used in steam generators,feedwater heaters,cladding of offshore installations,pump and propeller shafts,marine fixtures and fasteners,also chemical processing equipments.
Alloy K-500 is a nickel-copper super alloy with characteristics and corrosion resistance same as the alloy 400.Due to the addition of Aluminum and titanium alloy 500 offers greater strength and hardness than alloy 400.
chemical composition
|
Grade
|
%
|
Ni
|
Cu
|
Al
|
Ti
|
Fe
|
Mn
|
S
|
C
|
Si
|
|
k-500
|
min
|
63
|
27.0
|
2.30
|
0.35
|
|
|
|
|
|
|
|
max
|
|
33.0
|
3.15
|
0.85
|
2.0
|
1.5
|
0.01
|
0.25
|
0.5
|
Chemical composition
Ni:>63; Cu:27/33; Mn<1.5; Fe<2;Si<0.5; A1 2.3/3.15; Ti0.35/0.85
also we can supply monel alloy wire mesh screen.
Mesh size of the Monel Mesh
|
Main Specification of Monel Wire Mesh (Special Size can be custom made):
|
Mesh count
|
Wire diameter(mm)
|
Aperture(mm)
|
Max width(m)
|
|
10
|
0.60
|
1.94
|
1.60
|
|
20
|
0.40
|
0.87
|
1.60
|
|
30
|
0.30
|
0.55
|
1.60
|
|
40
|
0.23
|
0.40
|
1.60
|
|
50
|
0.20
|
0.31
|
1.60
|
|
60
|
0.15
|
0.27
|
1.60
|
|
70
|
0.12
|
0.24
|
1.60
|
|
80
|
0.13
|
0.19
|
1.60
|
|
90
|
0.12
|
0.16
|
1.60
|
|
100
|
0.10
|
0.15
|
1.60
|
|
120
|
0.09
|
0.12
|
1.60
|
|
150
|
0.063
|
0.11
|
1.60
|
|
180
|
0.053
|
0.01
|
1.60
|
|
200
|
0.053
|
0.07
|
1.60
|
|
250
|
0.040
|
0.063
|
1.60
|
|
300
|
0.040
|
0.044
|
1.60
|
|
325
|
0.035
|
0.043
|
1.60
|
|
350
|
0.030
|
0.042
|
1.60
|
|
400
|
0.030
|
0.033
|
1.60
|
|
Thanks for your kind attention, any need, pls feel free to contact with me:
