Professional Nickel Mesh Screen Corrosion Resistance Nickel Chromium Wire

Brand Name : TIANHAO

Model Number : TH-006

Certification : ISO

Place of Origin : Hebei

MOQ : 1 kg

Price : Price will be offered to you once get your detailed specification.

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 200sqm/Day

Delivery Time : Stocked: within 3days, If no stock, 20-30days.

Packaging Details : 1.inside use carton pipe for support+wire mesh layer+water proof paper 2.outside use plastic wooden bags, +wooden case/carton pipes/wooden pallets. 3.also we can as per your requirements.

Product Name : Monel 400 K 500 wire mesh

Material : Monel 400 k500

Weave type : Plain twill and dutch weave

Roll width : 0.914 1.0 1.22 1.524 2.0m

Roll length : 30.5 100 50m

Application : Filtering

Festure : Corrosion resistance

Contact Now

Monel Wire Mesh 400 , Monel 400 Woven Wire Mesh,60 mesh monel mesh screen

Production Introduction

Monel 400 material is a nickel-copper alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, alloy 400 is rapidly attacked by nitric acid and ammonia systems.

Mechanical properties of monel alloy 400

Related character	Tensiile strength (MPa)	yield strength (MPa)	elongation(%)	hardness(HB)
Data	480/1275	170/790	20/35	255/370

Related character

Tensiile strength (MPa)

yield strength (MPa)

elongation(%)

hardness(HB)

Data

480/1275

170/790

20/35

255/370

UNS # - N04400

This 400 grade Monel is highly resistant to the corrosive action of acids, alkalides and salt water. It has the same strength of mild steel.

Chemical Composition:

C - 0.03%

Cu - Rem.

Fe - 2.5%

Mn - 2.0%

Ni - 63.0 - 70.0%

S - 0.024%

Si - 0.50%

Alloy K-500 is a nickel-copper super alloy with characteristics and corrosion resistance same as the alloy 400.Due to the addition of Aluminum and titanium alloy 500 offers greater strength and hardness than alloy 400.

chemical composition

Grade	%	Ni	Cu	Al	Ti	Fe	Mn	S	C	Si
k-500	min	63	27.0	2.30	0.35
	max		33.0	3.15	0.85	2.0	1.5	0.01	0.25	0.5

Chemical composition

Ni:>63; Cu:27/33; Mn<1.5; Fe<2;Si<0.5; A1 2.3/3.15; Ti0.35/0.85

Mesh size of the Monel Mesh

Main Specification of Monel Wire Mesh (Special Size can be custom made):

Mesh count	Wire diameter(mm)	Aperture(mm)	Max width(m)
10	0.60	1.94	1.60
20	0.40	0.87	1.60
30	0.30	0.55	1.60
40	0.23	0.40	1.60
50	0.20	0.31	1.60
60	0.15	0.27	1.60
70	0.12	0.24	1.60
80	0.13	0.19	1.60
90	0.12	0.16	1.60
100	0.10	0.15	1.60
120	0.09	0.12	1.60
150	0.063	0.11	1.60
180	0.053	0.01	1.60
200	0.053	0.07	1.60
250	0.040	0.063	1.60
300	0.040	0.044	1.60
325	0.035	0.043	1.60
350	0.030	0.042	1.60
400	0.030	0.033	1.60

Professional Nickel Mesh Screen Corrosion Resistance Nickel Chromium Wire

Thanks for your kind attention, any need, pls feel free to contact with me:

Product Tags:

nickel mesh electrode

wire mesh material

China Professional Nickel Mesh Screen Corrosion Resistance Nickel Chromium Wire wholesale

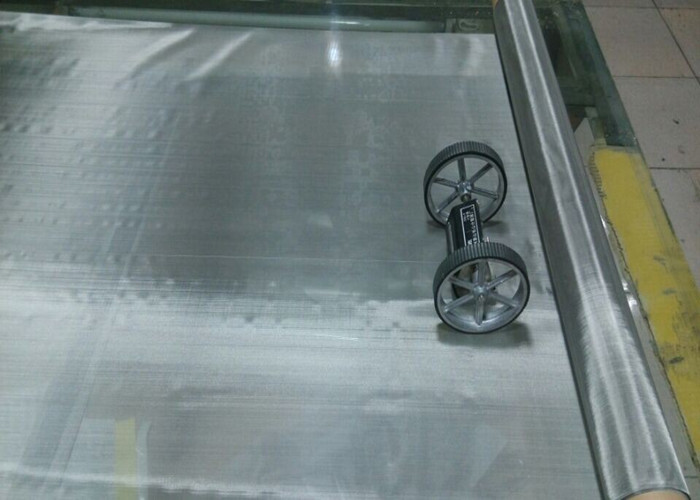

Professional Nickel Mesh Screen Corrosion Resistance Nickel Chromium Wire Images
