Production Introduction
Inconel Mesh is made of Inconel alloys for use in the moderate to severely corrosive conditions at high temperatures. We produce Inconel mesh in the following grades:
Inconel Mesh has excellent resistance to carburization, pitting and crevice corrosion, stress corrosion cracking and oxidation. It is resistant to a wide range of corrosive media such as organic, inorganic compounds, acids and alkali. It possesses high temperature mechanical strength, creeping resistance and long service life.
Material details
UNS N08811
Incoloy 800 is a nickel – iron – chromium alloy with good strength and excellent resistance to oxidation and carburization in high temperature atmospheres up to 1100 degrees F. It also resists corrosion in many aqueous environments. The low carbon content helps prevent sensitization and consequent intergranular corrosion of weld heat-affected zones. Used for flue-gas scrubbers and for handling phosphoric and sulfuric acids.
Incoloy 800 Fact Sheet
Composition [Ni 32.5%, Cr 21.0%, C .10 Max, Fe Balance]
Specifications ASTM B408
Density 0.288 lbs/in³
Tensile Strength 110 Kpsi*
Elongation 30%*
Melt 2500° F
Max. Operating Temperature 1900° F
USN N08810 & UNS N08811
The Incoloy 800H and 800HT nickel – iron – chromium alloys are the same basic alloys as Incoloy 800 but with significantly higher creep-rupture strength. This is achieved by close control of carbon, aluminum and titanium contents in conjunction with a high-temperature anneal. These alloys are used in chemical and petrochemical processing, in power plants, industrial furnaces and heat treating equipment.
Incoloy 800H/HT Fact Sheet
Composition [Fe 39.5% approx., Ni 30-35%, Cr 19-23%, C 0.06-0.1%]
Specifications ASTM B408
Density 0.287 lbs/in³
Tensile Strength 110 Kpsi*
Elongation 32%*
Melt 2500° F
Max. Operating Temperature 1900° F
UNS N08825
This is a nickel – iron – chromium alloy with additions of molybdenum and copper. It has excellent resistance to both reducing and oxidizing acids, to stress cracking, and to localized attack such as pitting and crevice corrosion. Incoloy 825 is especially resistant to sulfuric and phosphoric acids. Often used in chemical processing, pollution-control equipment, oil and gas well piping, nuclear processing, acid production and pickling equipment.
Incoloy 825 Fact Sheet
Composition [Ni 38-46%, Cr 19.5-23.5%, Fe 22% min, Mo 2.5-3.5%, Cu 1.5-3%]
Specifications ASTM B425
Density 0.294 lbs/in³
Tensile Strength 115 Kpsi*
Elongation 30%*
Melt 2525° F
Max. Operating Temperature 1900-2000° F
Mesh size of the Inconel Mesh
|
Main Specification of Hastelloy Wire Mesh (Special Size can be customized):
|
Mesh count
|
Wire diameter(mm)
|
Aperture(mm)
|
Max width(m)
|
|
10
|
0.60
|
1.94
|
1.60
|
|
20
|
0.40
|
0.87
|
1.60
|
|
30
|
0.30
|
0.55
|
1.60
|
|
40
|
0.23
|
0.40
|
1.60
|
|
50
|
0.20
|
0.31
|
1.60
|
|
60
|
0.15
|
0.27
|
1.60
|
|
70
|
0.12
|
0.24
|
1.60
|
|
80
|
0.13
|
0.19
|
1.60
|
|
90
|
0.12
|
0.16
|
1.60
|
|
100
|
0.10
|
0.15
|
1.60
|
|
120
|
0.09
|
0.12
|
1.60
|
|
150
|
0.063
|
0.11
|
1.60
|
|
180
|
0.053
|
0.01
|
1.60
|
|
200
|
0.053
|
0.07
|
1.60
|
|
The service we offer

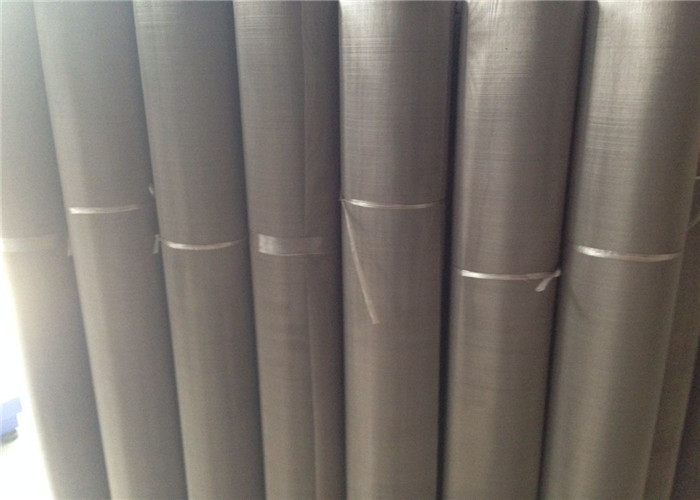

Goods pics
Thanks for your kind attention, any need, pls feel free to contact with me !
