Iron Chromium Aluminium FeCrAl Woven Wire Mesh High Temperature Resistance

Name: Iron Chromium Aluminium FeCrAl Woven Wire Mesh High Temperature Resistance
Brand: TIANHAO
Price: 1 USD

China Iron Chromium Aluminium FeCrAl Woven Wire Mesh High Temperature Resistance wholesale

Brand Name : TIANHAO

Model Number : TH-heat resistacen mesh

Certification : ISO

Place of Origin : HEBEI

MOQ : 1sqm

Price : Price will be offered to you once get your detailed specification.

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200sqm per day

Delivery Time : In stock, within 3-5 work days, no stock, 15-20work days. If have mold, 10-15days, if no mold, 20-30days.

Packaging Details : 1.inside use carton pipe for support+wire mesh layer+water proof paper 2.outside use plastic wooden bags, +wooden case/carton pipes/wooden pallets. 3.also we can as per your requirements.

Material : FeCrAl alloy wires

Mesh : 1-200 mesh, 100 mesh stocked

Feature : High Temperature Resistance

Weaving : Plain twill and dutch

wire diameter : 0.05- above

Type : Woven mesh

Contact Now

-Iron chromium aluminium FeCrAl Woven Wire Mesh High Temperature Resistance

What is FeCrAl Wire mesh?

FeCrAl woven wire mesh is also called FeCrAl alloy woven wire, heating resistance alloy woven wire, electro thermal alloy mesh. The raw material is woven into a continuous meshes. Except for the FeCrAl woven wire mesh, there are FeCrAl expanded metal mesh and FeCrAl perforated mesh.

FeCrAl woven wire has outstanding heating resistance, oxidation resistance performance. It is mainly used in the industry electric furnace, household appliances. It is an ideal material for heating and drying.

Specifications

Material: 1Cr13Al4, 1Cr12Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2.

Mesh size: 8 mesh - 80 mesh.

Wire diameter: 21G - 43G.

Weaving type: plain weave and twill weave.

Max working temperature:

1Cr13Al4 - 950 degree.
1Cr21Al4 - 1100 degree.
0Cr21Al6 - 1250 degree.
0Cr23Al5 - 1250 degree.
0Cr25Al5 - 1250 degree.
0Cr21Al6Nb - 1350 degree.
0Cr27Al7Mo2 - 1400 degree.

See below: ---FeCrAl Mesh Highest Working Temperature:

Alloy	Temperature
Cr21Al4	1100oC
Cr21Al6	1250oC
Cr23Al5	1250oC
Cr25Al5	1250oC
D	1200oC
A-1	1350oC

Applications

The FeCrAl woven wire mesh is mainly used as the drying and heating equipment in metallurgy, colliery, dyeing, food factory, hospital, high density board factory and cardboard.
The FeCrAl woven wire mesh is an ideal heating resistance material in the industry electric furnace, household appliances, gas burners and infrared device.
There are still FeCrAl expanded heaters and FeCrAl perforated heaters.

Features

Heating resistance.
Oxidation resistance.
Sulfur resistance.
Anti-carburizing.
High surface load.
Long lasting and durable.
Low temperature coefficient of resistance.

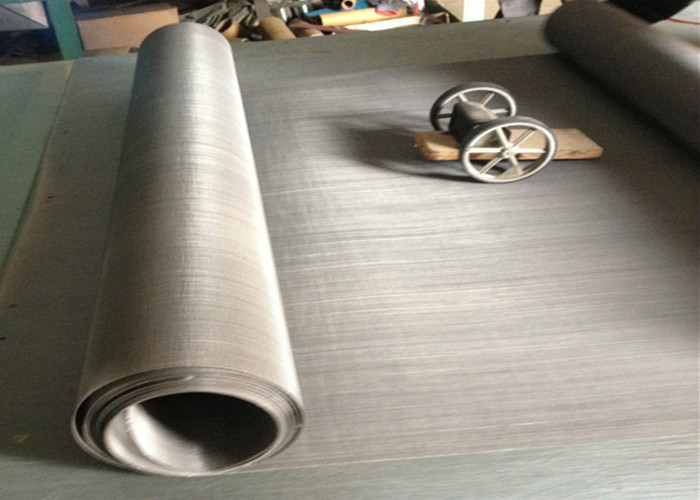

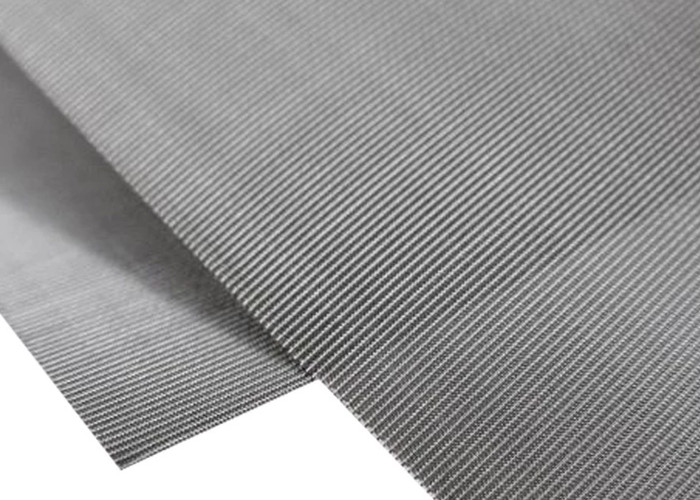

Product pic:

Iron Chromium Aluminium FeCrAl Woven Wire Mesh High Temperature Resistance

Thanks for your attention, any need, pls feel free to contact with me !
