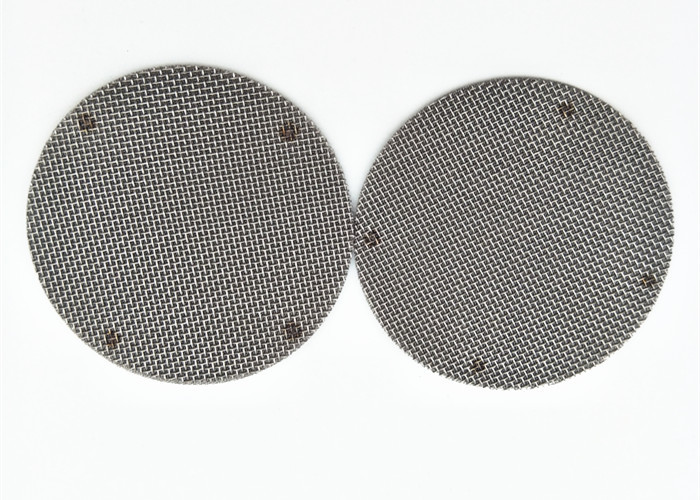

Multilayer FeCrAl Stainless Sintering Mesh Filter Disc For Hydraulic Oil Filter
Sintering wire mesh description,
Sintered metal mesh is a new type of filter material which is made of multi-layer metal braided wire mesh and is manufactured by a special lamination press and vacuum sintering process, and has a high mechanical strength and an overall rigid structure.
Feature
1. High strength and good rigidity: High mechanical strength and compressive strength, good processing, welding and assembling performance, and easy to use.
2. Uniform and stable precision: It can achieve uniform and uniform filtration performance for all the filtering precision. The mesh does not change during use.
3. Excellent cleaning performance: good counter-current cleaning effect, repeated use, long life (can be counter-current water, filtrate, ultrasonic, melting, baking and other methods of cleaning).
The main purpose
1. Used for dispersing cooling material in high temperature environment
2. For gas distribution, liquid bed plate materials
3. For high pressure backwash oil filter
4.For high-precision, high-reliability high-temperature filter materials
Applications
1. Precise filtration of various hydraulic oil lubricating oils in the machinery industry;
2.The application of gas homogenization in the powder industry, fluidized plates in the steel industry;
3. In the explosion-proof electrical appliances, etc.
The size table,
| Item | Sintered Wire Mesh Disc |
| Material | FeCrAl, 310S, Stainless Steel 316,316L |
| Layer | 5 Layer or 6 Layer |
| Specification | Filter Rating, 1 to 300 Micron 5 Layer Thickness 1.7MM 6 Layer Thickness, 3.5MM (Add 1 Layer Mesh 10) The common Size 0.5M X 1M, 1M X 1M,0.6M X 1.2M, 1.2M X 1.2M |
| Filtering Rule | If the support layer on outside, then Filtering from inner to outside If the support layer on inside, then filtering from outside to inner. |
| Quotation Need | Material, Thickness, Layer and Filter rating |
| Customized | Available |
