Heat resistance 1400 degree C22 C276 Hastelloy woven wire mesh screen used for infrared device

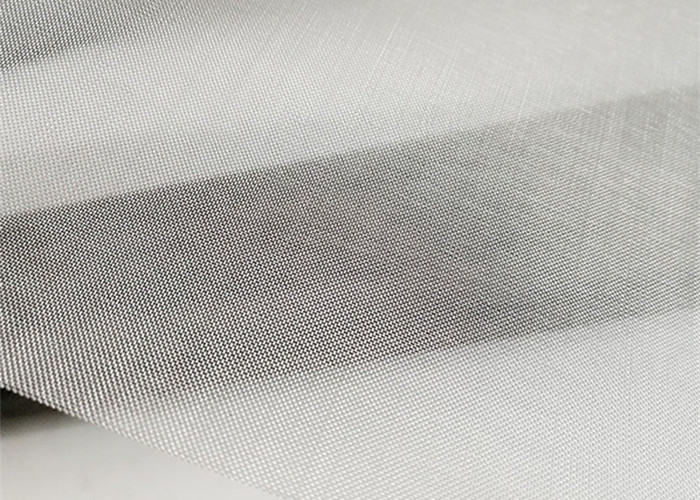

Hastelloy Alloy Screen Mesh Roll
1. Material: Hastelloy wire B-2,B-3,C-22,C-276
2. Mesh Count: 2-100
3. Chemical Composition
| Type | C | Co | Cr | Cu | Fe | Mn | Mo | Ni | P | S | Si | Sn | V | W |
| H-B | 0.12 | 2.5 | 1.00 | - | 6.0 | 1.0 | 26.0 - 30.0 | Rem. | 0.01 | - | 0.03 | - | 0.6 | - |
| H-C22 | 0.015 | 2.5 | 14.5 - 20.0 | - | 2.0 - 6.0 | 0.5 | 12.8 - 14.5 | Rem. | - | 0.02 | 0.08 | - | 0.35 | - |
| H-C276 | 0.02 | 2.5 | 14.5 - 16.5 | - | 4.0 - 7.0 | 1.0 | 15.0 - 17.0 | Rem. | 0.03 | 0.03 | 0.08 | - | 0.35 | 3.0 - 4.5 |
| H-X | 0.08 | - | 17.0 - 20.0 | 1.0 | Rem. | 2.0 | - | 34.0 - 37.0 | 0.03 | 0.03 | 0.75 - 1.50 | 0.025 | - | - |
Hastelloy woven wire mesh screen Features:
Mainly resistant to high temperature, oxidation, long-term thermal stability and processability, resistance to intergranular corrosion, weld crevice corrosion, moisture resistant chlorine, various oxidizing chlorides, chloride solutions, sulfuric acid, sulfurous acid, acetic acid, formic acid and oxidation Salt has good corrosion resistance in low temperature and medium temperature hydrochloric acid.
Hastelloy woven wire mesh screen Use:
In the past 30 years, it has been widely used in harsh corrosive environments such as agrochemicals, biopharmaceuticals, nuclear facilities, chemicals, petrochemicals, flue gas desulfurization, pulp and paper, and environmental protection. Hastelloy is suitable for use in a variety of chemical industries containing oxidizing and reducing media. The higher molybdenum and chromium contents make the alloy resistant to chloride ion corrosion, and the tungsten element further improves the corrosion resistance. At the same time, C-276 Hastelloy tube is one of only a few materials resistant to moisture chlorine, hypochlorite and chlorine dioxide solution. It has high concentration of chloride solution such as ferric chloride and copper chloride. Significant corrosion resistance.
Hastelloy woven wire mesh screen Application field
Heat exchangers, bellows compensators, chemical equipment, flue gas desulfurization and denitrification, paper industry, aerospace applications, acidic environments.
1 Excellent corrosion resistance for most corrosive media in both oxidizing and reducing states.
2 Excellent resistance to pitting, crevice corrosion and stress cracking corrosion.
The Hastelloy series of wire mesh produced by our company is mainly supplied to the Chinese Academy of Sciences, nuclear power plants, military industry, etc. The product quality and material requirements are very strict. Due to the difficulty in drawing the material, the minimum wire diameter in China is 0.1 mm, and the maximum mesh size can be made. Up to 100 mesh, you can also customize the mat-type high mesh number thickening screen. The Hastelloy mesh produced by our factory supports chemical testing, and can provide formal material list, product qualification certificate, portable spectrometer component detection data, please consult for details. Online customer service, thank you for your cooperation!
| Item | Hastelloy Wire Mesh |
| Material | Hastelloy Wire B-2, C-276, B-3, C-22 |
| Weaving Type | Plain Weave Twill Weave |
| Specification | Mesh 2 - 200 |
| Feature | Super Corrosion Resistance Chemical Stability Excellent Filtering Performance |
| Application | Alloy of Nickel, Molybdenum and chromium. Petrochemical industry, Pulp, paper and Sea water. |
